Engineered for Effortless Anchor Handling
Streamline your boating experience with Powerwinch’s advanced windlass and capstans. Engineered for smooth and efficient anchor handling, our equipment combines power and durability to keep you safe and secure on the water. Whether for a yacht or a fishing boat, Powerwinch delivers trusted marine solutions for every need.

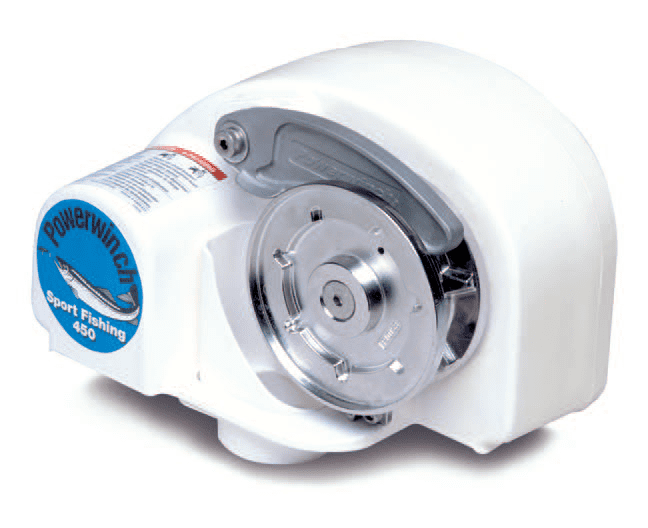

Sport Fishing 450

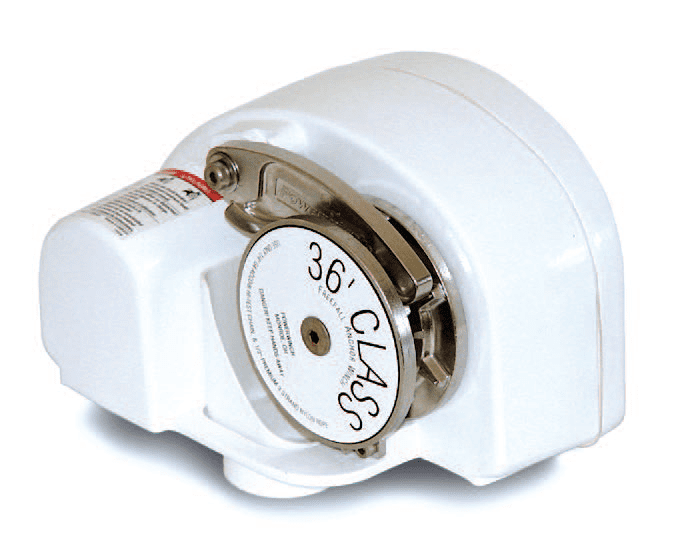

Windlass Class 36'

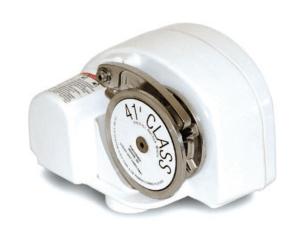

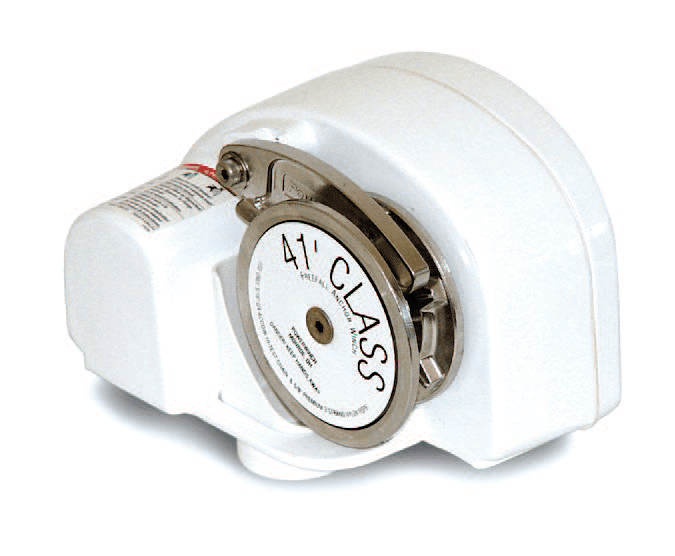

Windlass Class 41'

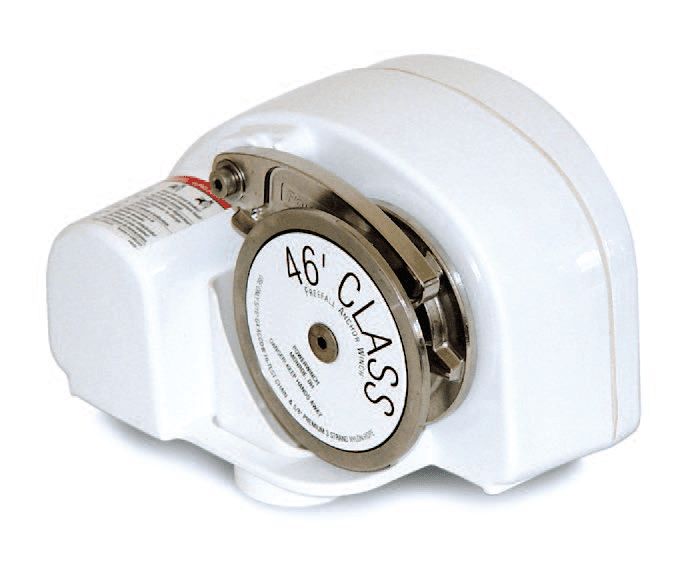

Windlass Class 46'
SUGGESTED BOAT LENGTH
Up to 27’
Up to 36'
Up to 41’
Up to 46’
RETRIEVAL SPEED
70' / min
80' / min
75' / min
70' / min
PULLING POWER
450 lbs
775 lbs
900 lbs
1,100 lbs
ANCHORING SPEED
up to 150' / min
up to 250' / min
up to 300' /min
up to 350' / min
LINE SIZE & TYPE
1/2" Powerwinch Premium Medium Lay Nylon
1/2" Powerwinch Premium Medium Lay Nylon
5/8" Powerwinch Premium Medium Lay Nylon
5/8" Powerwinch Premium Medium Lay Nylon
CHAIN SIZE & TYPE
1/4" Hi-test ACCO G4
1/4" Hi-test ACCO G4
5/16" Hi-test ACCO G4
5/16" Hi-test ACCO G4
ROPE & CHAIN SYSTEM
Metal Alloy
Stainless Steel
Stainless Steel
Stainless Steel
REQUIRED WIRE SIZE TO BATTERY
50' run & under - 8 gauge Over 50' run - 6 gauge
50' run & under - 8 gauge Over 50' run - 6 gauge
70' run - 6 gauge
70' run - 6 gauge
HELM OPERATED CONTROL SWITCH
Rocker
Rocker
Rocker
Rocker
STANDARD EQUIPPED THERMAL CIRCUIT BREAKER
25 amp, auto-reset
25 amp, auto-reset
25 amp, auto-reset
60 amp, auto-reset
AVERAGE AMP DRAW
8-10 amps
8-12 amps
10-14 amps
14-18 amps
UNIT WEIGHT
21 lbs
22 lbs
23 lbs
24 lbs
DIMENSIONS (L x W x H)
10 9/16" x 7" x 6 5/16"
10 9/16" x 7" x 6 5/16"
10 9/16" x 7" x 6 5/16"
10 9/16" x 7" x 6 5/16"
DUAL SWITCH SOLENOID
Optional P1200000AJ, not included
Optional P1200000AJ, not included
Optional P1200000AJ, not included
Included
